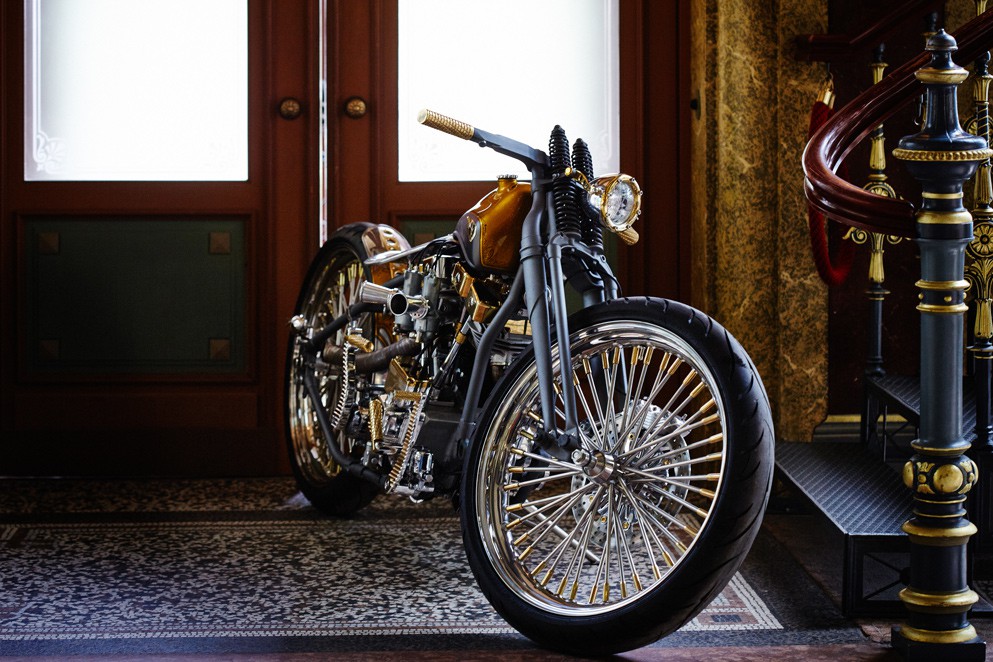

DEEP THROAT - "Biker Built of" bike by Fabian Müller

Probably the biggest challenge for us so far was the participation in the "Biker Built of" in December 2015 in Bad Salzuflen. Until now, the focus of Müller Motorcycle AG has always been on parts development and production. But with this, we entered the realms of the customizing scene. For eight months we slaved like idiots, carved out all the parts, right down to the screws, by machine and by hand, tinkered and fiddled until our heads were spinning. On December 6 at the CUSTOMBIKE SHOW, the result was clear. With only 7 votes difference we have lost narrowly against Yuri Shif. He has created a truly spectacular bike with his "Ducky". But the close result shows us that we as the "underdog" have done a great job and we are all very proud of that.

For us, this project was a rare milestone in our company and family history. Something that we will not forget so quickly and will always have a special significance. Therefore, we also wanted to offer this bike a very special stage and capture this extraordinary event in great pictures.

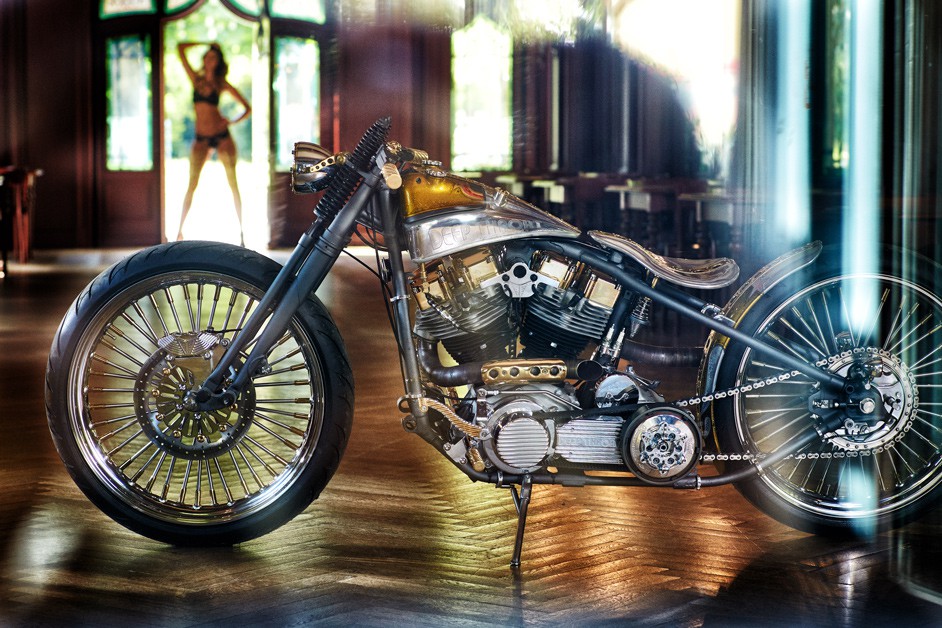

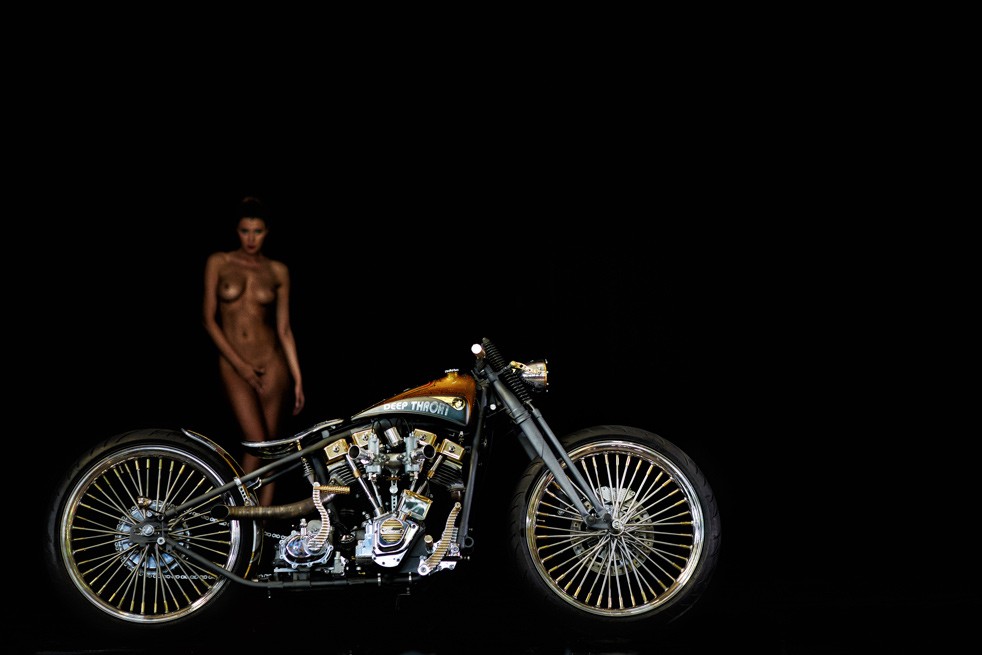

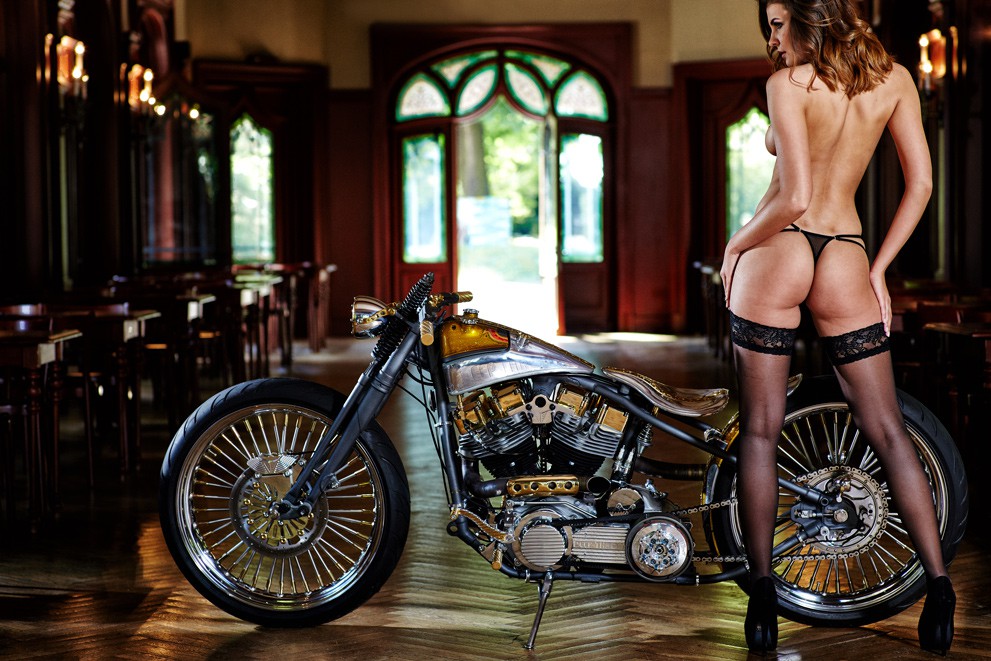

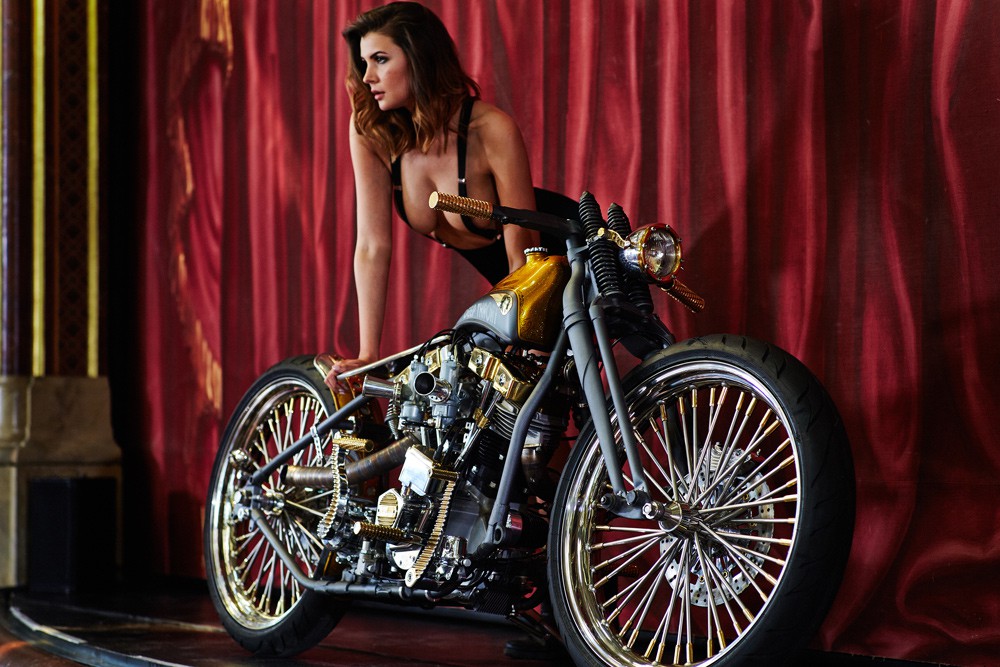

A special photo shoot was planned. A special location - and a special model, because with this theme a beautiful woman can not be missing, right? The search for a model alone was more than difficult. I was all the happier when Olga Kaminska(www.olgakaminska.com) agreed and we were able to find a date. She has already graced the covers of the Polish "Playboy" and other glossy magazines and has worked as an advertising face for international companies. The photography was done by Susanna Schaffry(www.schaffry.de), with whom we have already worked together on photos for our catalog, so we knew that we had a top photographer on our hands.

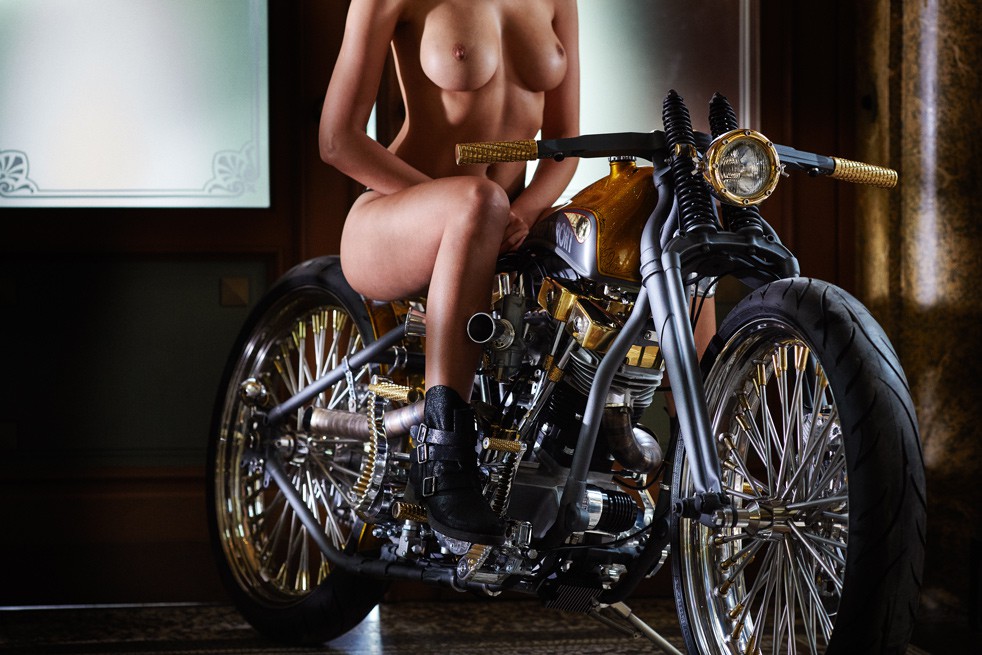

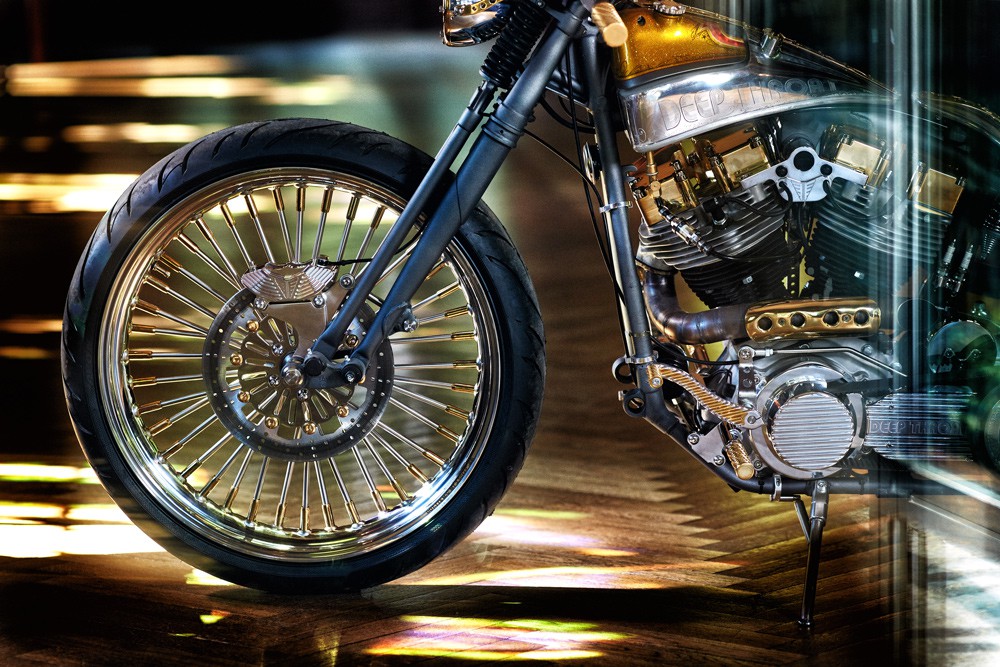

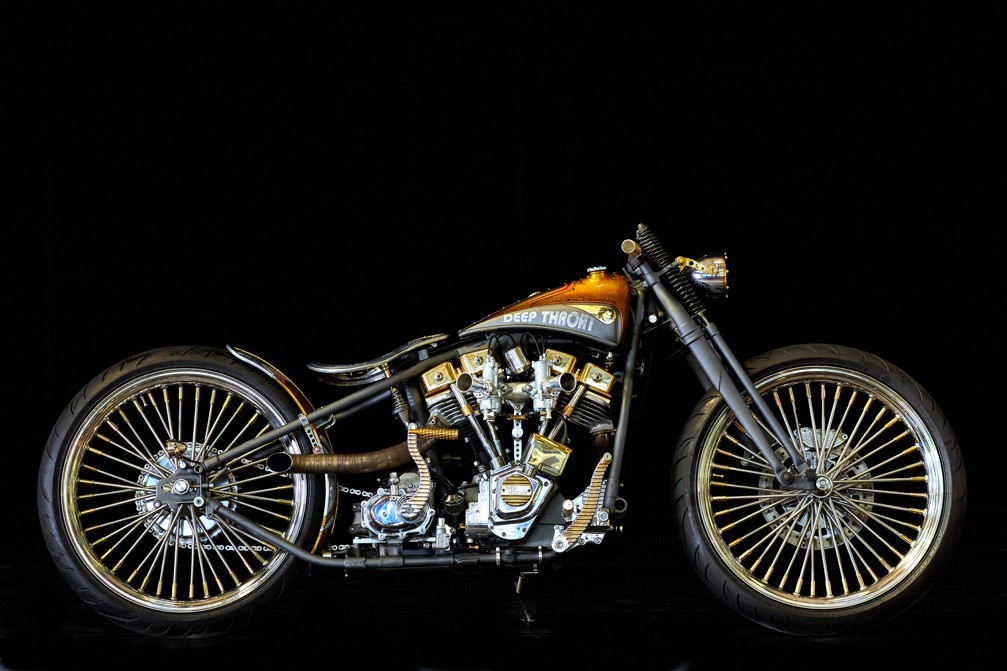

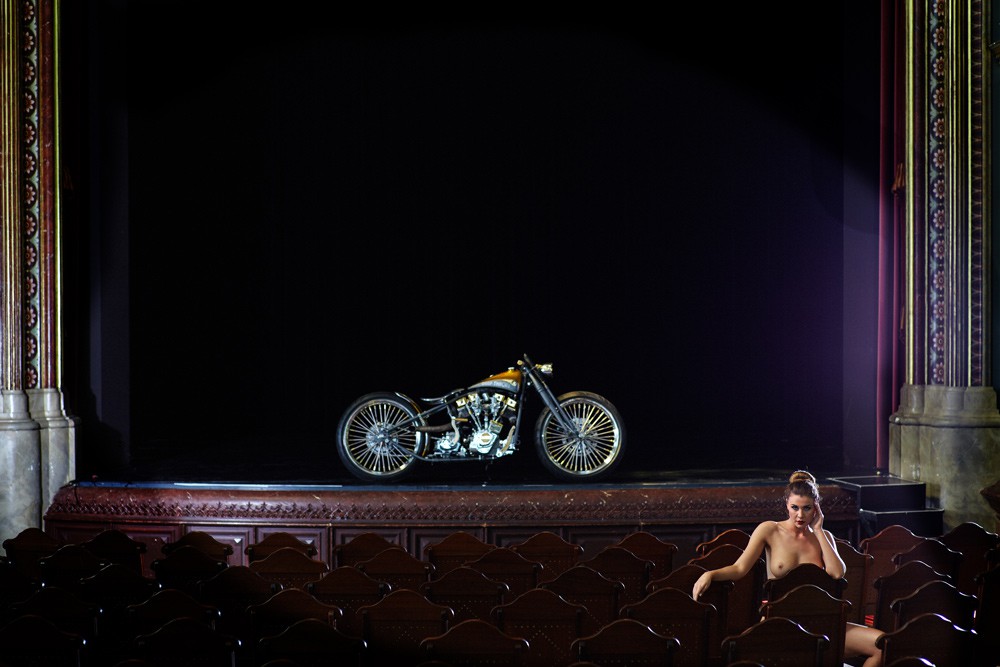

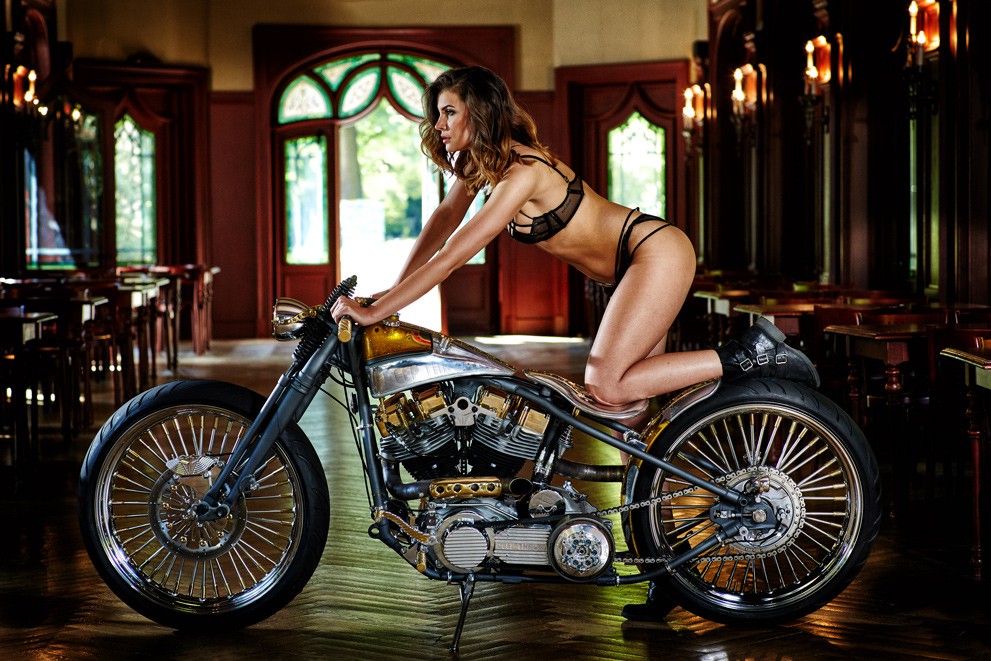

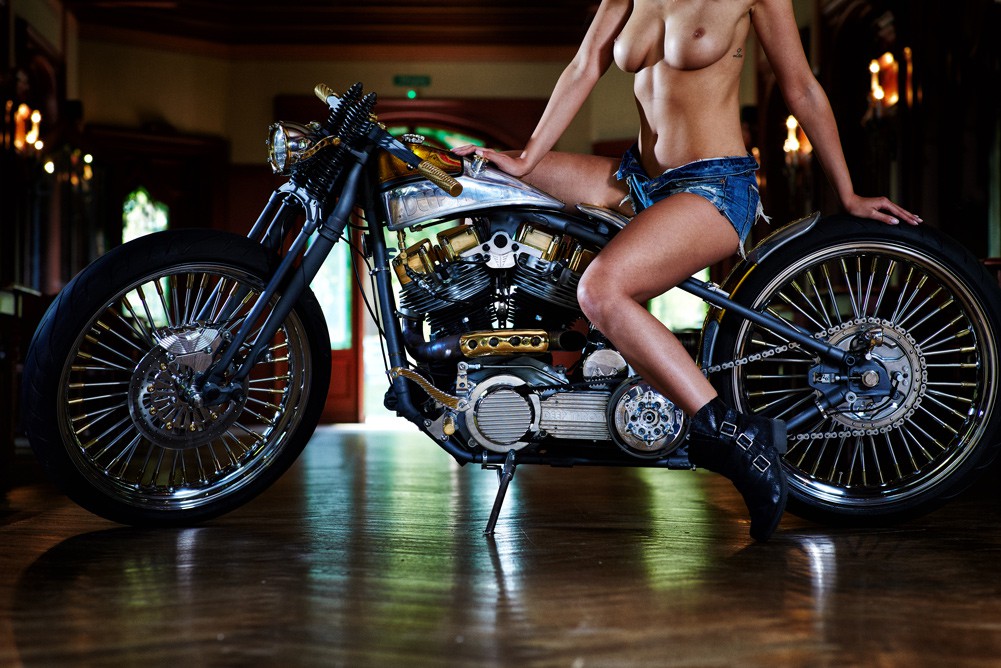

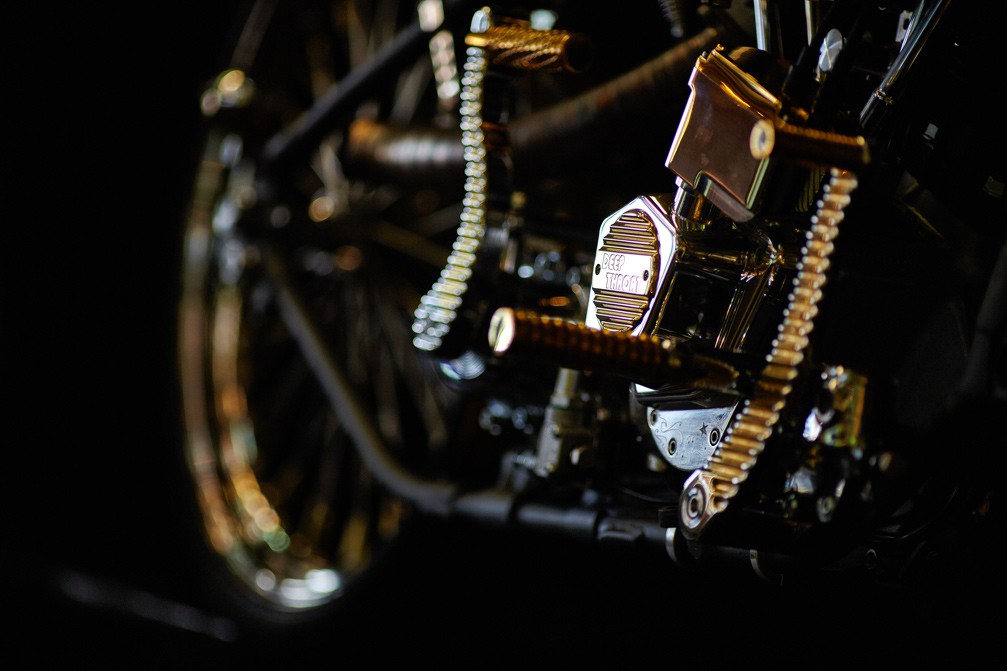

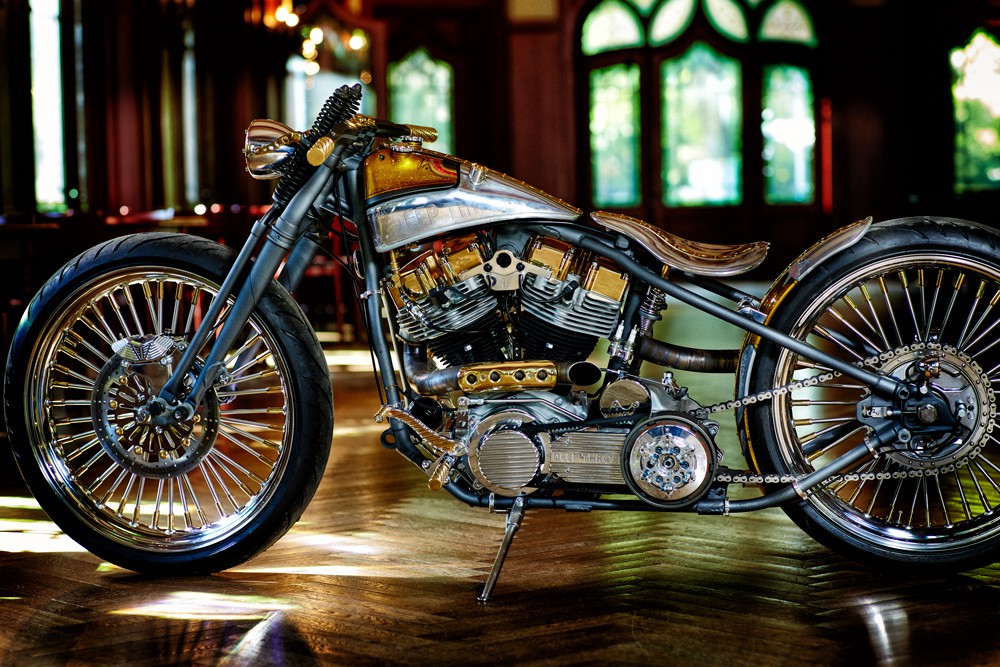

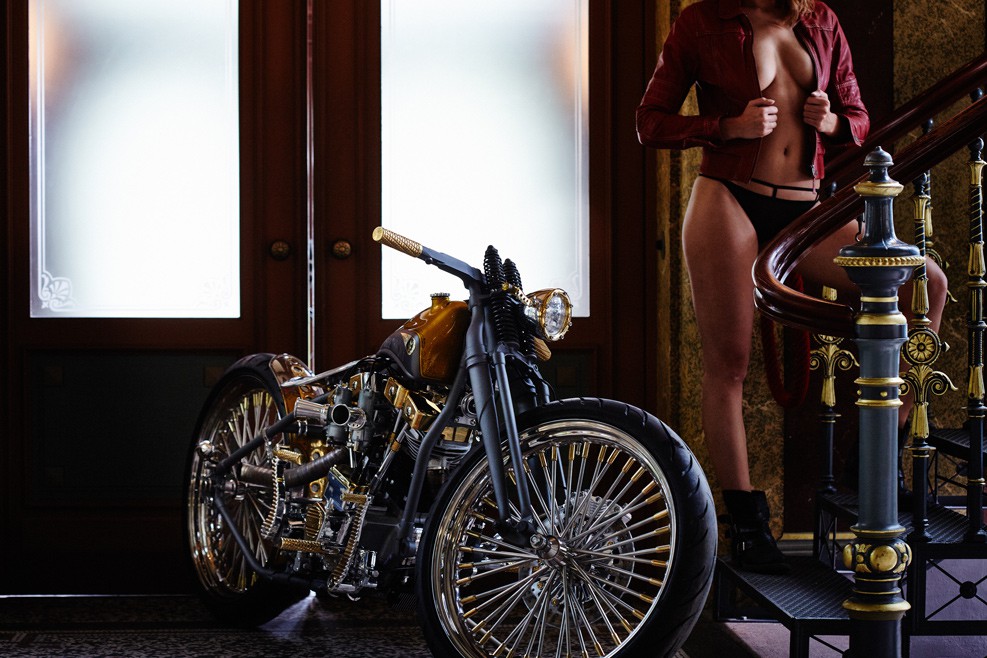

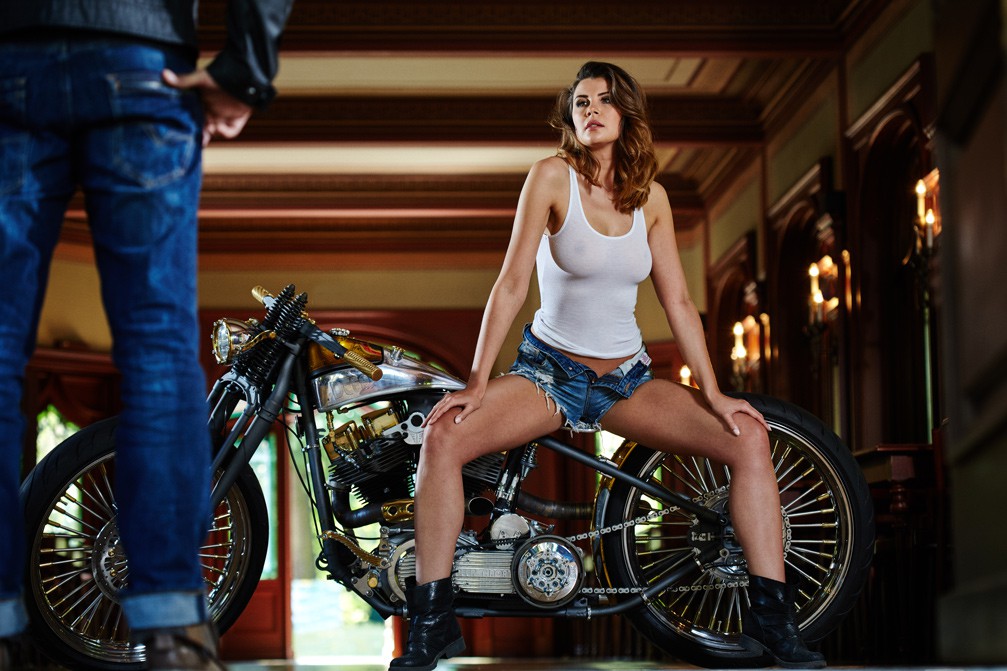

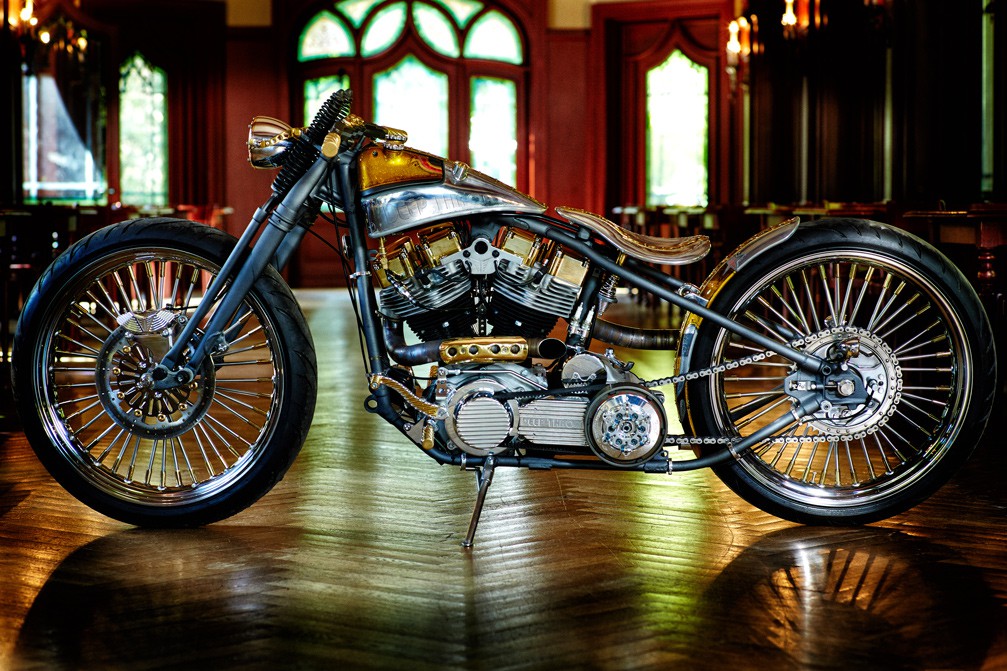

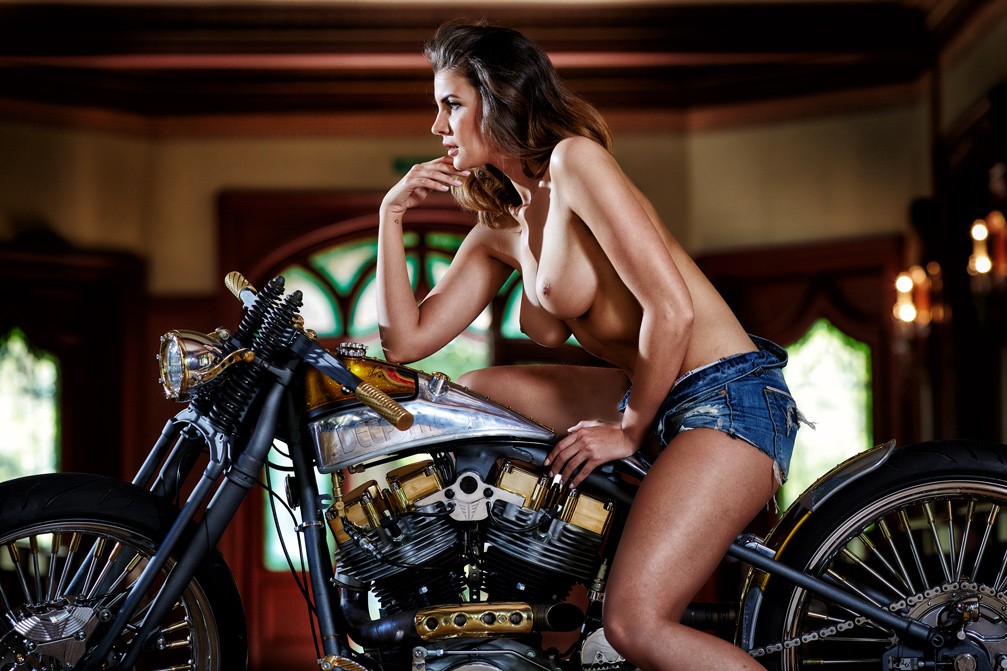

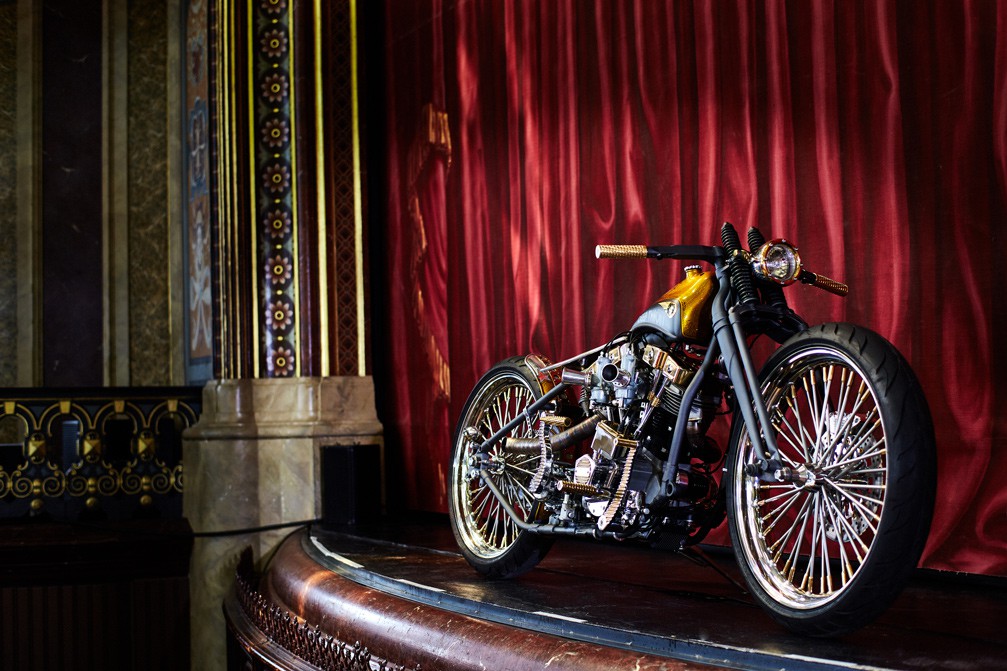

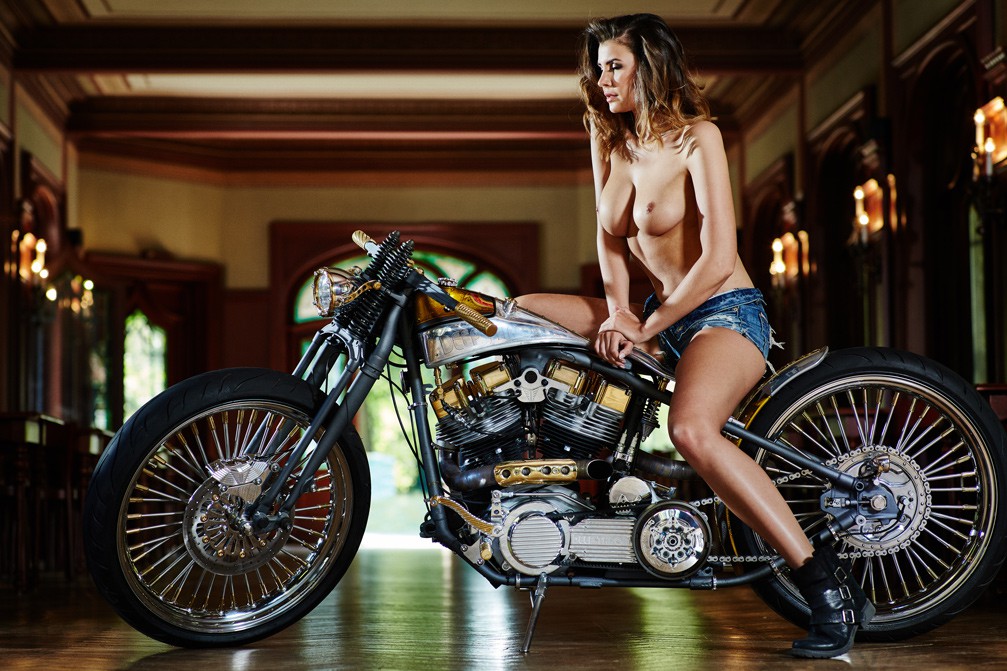

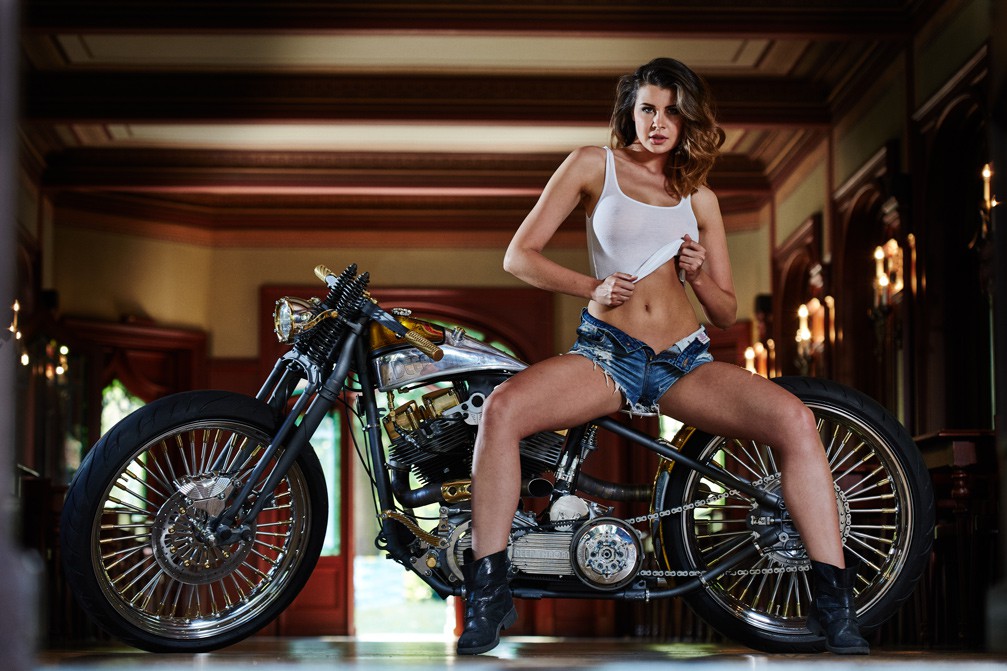

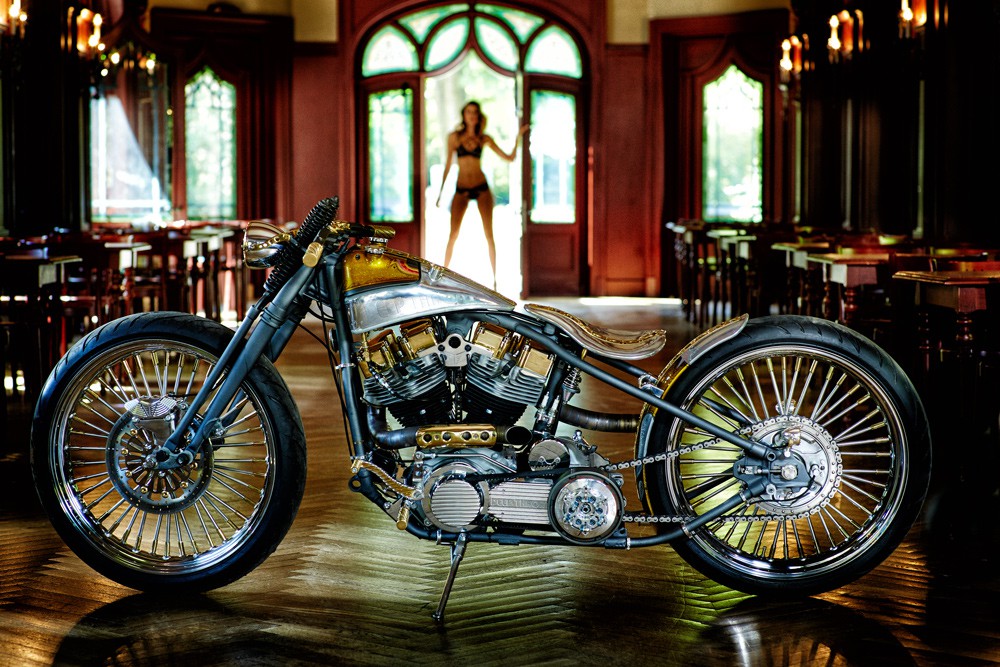

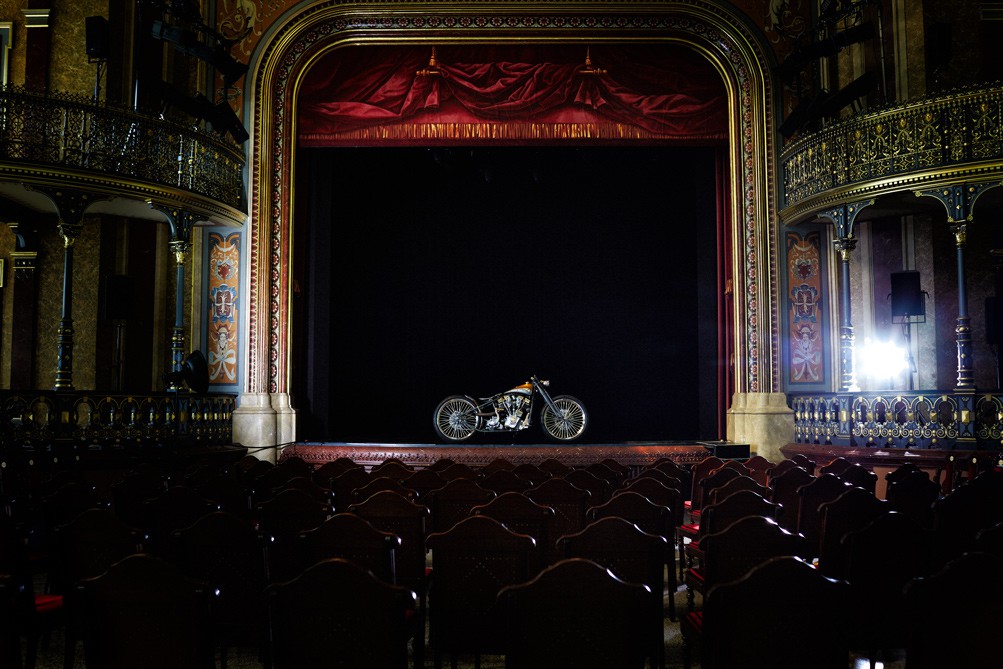

So now I'm especially happy to finally present you the pictures of our shoot! And please excuse that it took so long!

Best regards

Eva



If you want to see more of the DEEP THROAT, here's our short movie showing the development from the frame to the finished bike: https://www.m-motorcycle.de/Video-DEEP-THROAT

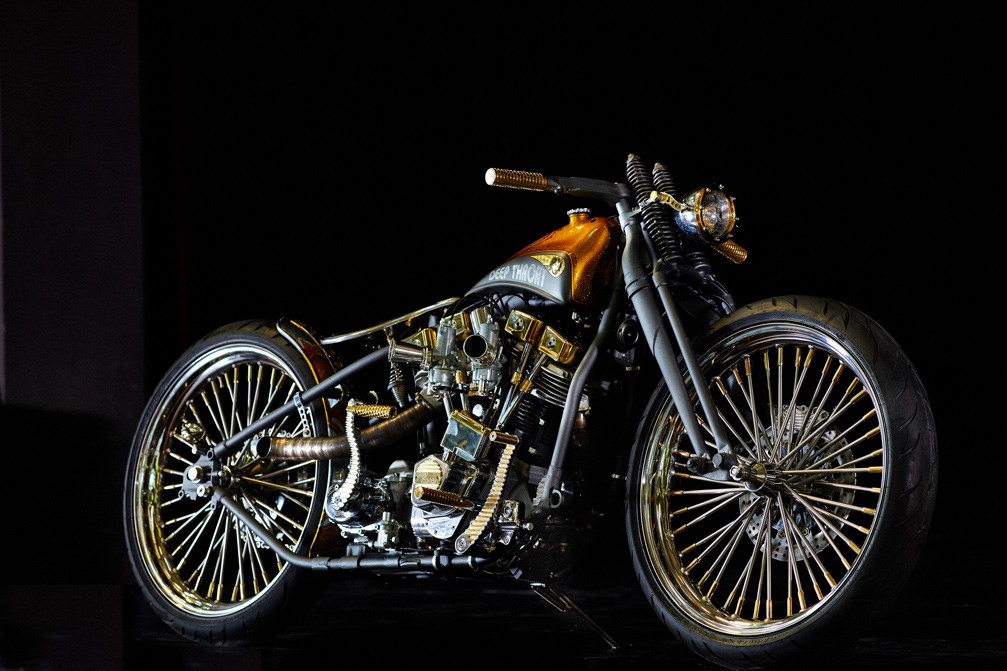

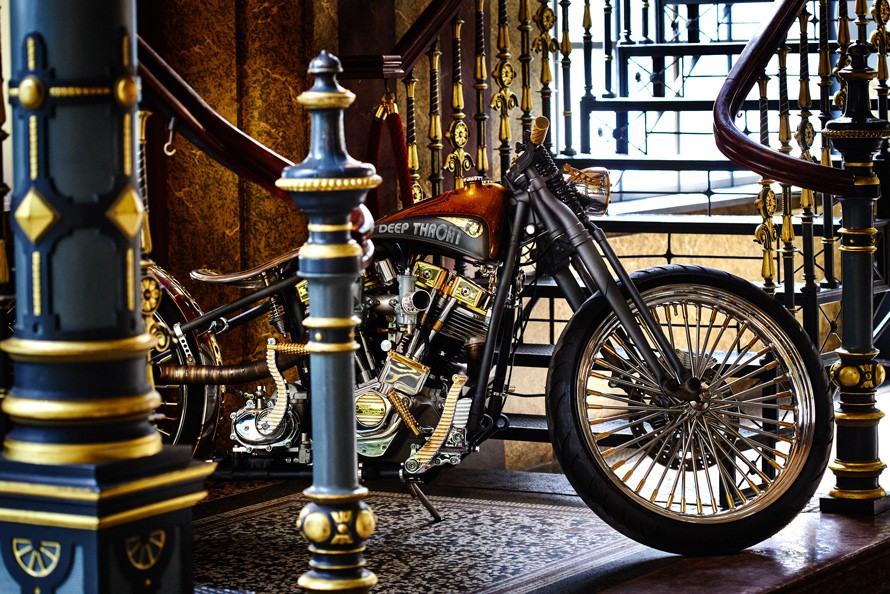

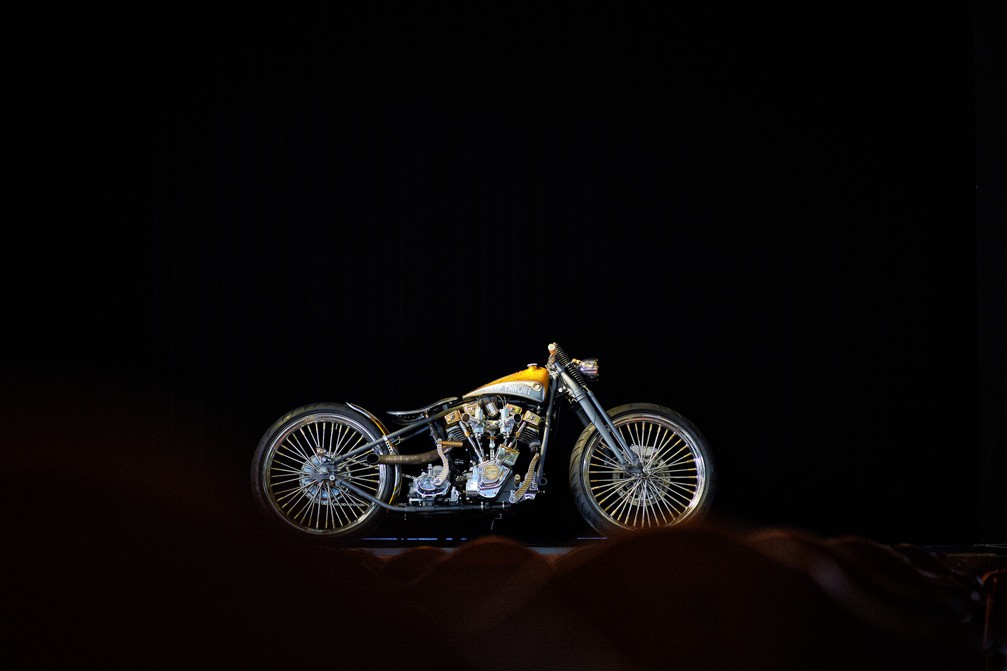

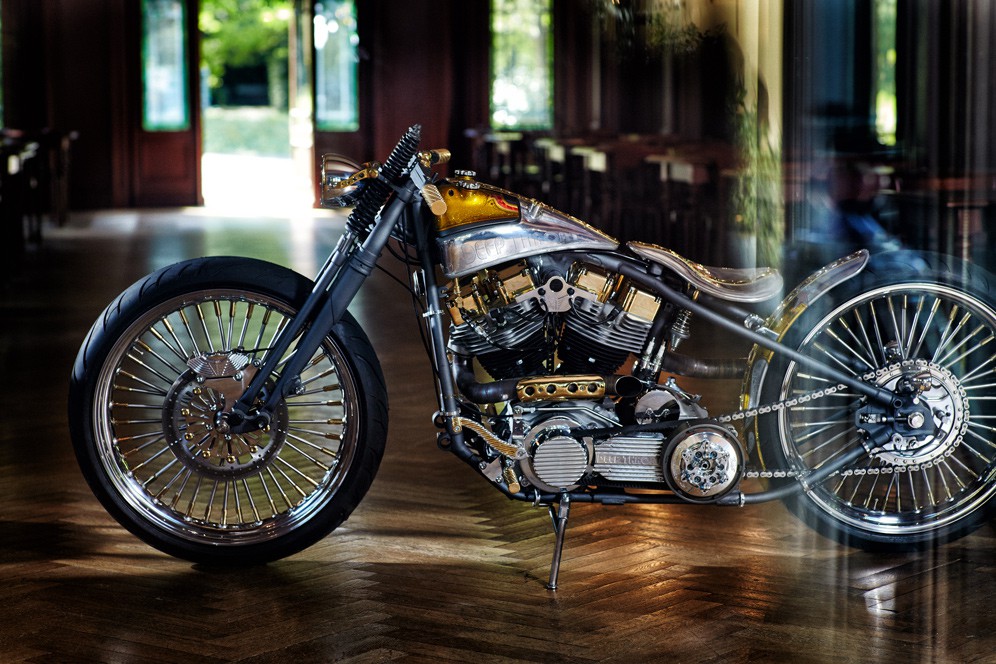

And here again all infos and specials about the bike:

Name of the bike: DEEP THROAT (a tribute to the famous porn movie of the 70ies)
Original vehicle base: Harley Davidson
Builder: Fabian Müller
Owner: Müller Motorcycle AG
Engine: Harley-Davidson Shovelhaed Bj. 1981
Displacement: 1340cc
Cylinder heads: org. H-D Shoverhead
Cylinder head covers: Chopper Kulture, 3D machined (material: solid brass)
Pistons: org. H-D
Valves: org. H-D
Rocker arms: S & S
Pushrods: Jims
Roller tappets: Jims
Pushrod covers: Müller Motorcycle AG
Camshaft: S & S
Crankcase: org. H-D
Crankshaft: org. H-D
Connecting rods: org. H-D
Ignition: Breaker
Carburetor : AMAL twin carburetor
Air filter housing: AMAL
Exhaust system/manifold:Traditional Motors (Sebastian Attenberger)
Power: approx. 65 hp
Chassis: H-D org. Wishbone rigid frame, built 1952
Rake/Stretch: org. 36°
Camshaft cover: Desing similar to Magneto custom made Müller Motorcycle AG
Transmission: H-D org. 4 speed with kickstarter

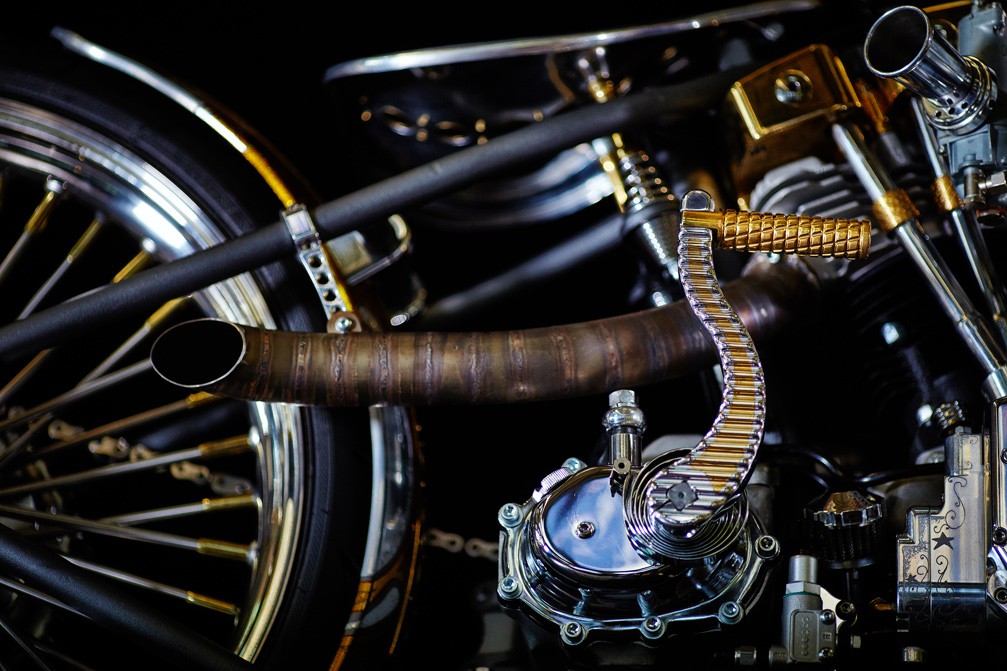

Kickarm: Alu/Brass custom Müller Motorcycle AG
Primary: Rivera 8mm Belt
Primary Cover: custom Müller Motorcycle AG
Clutch: Barnett Skorpion Lock-Up Cluch
Secondary Drive: Chain 5/8x1/4"
Front fork: Accessory Springer fork

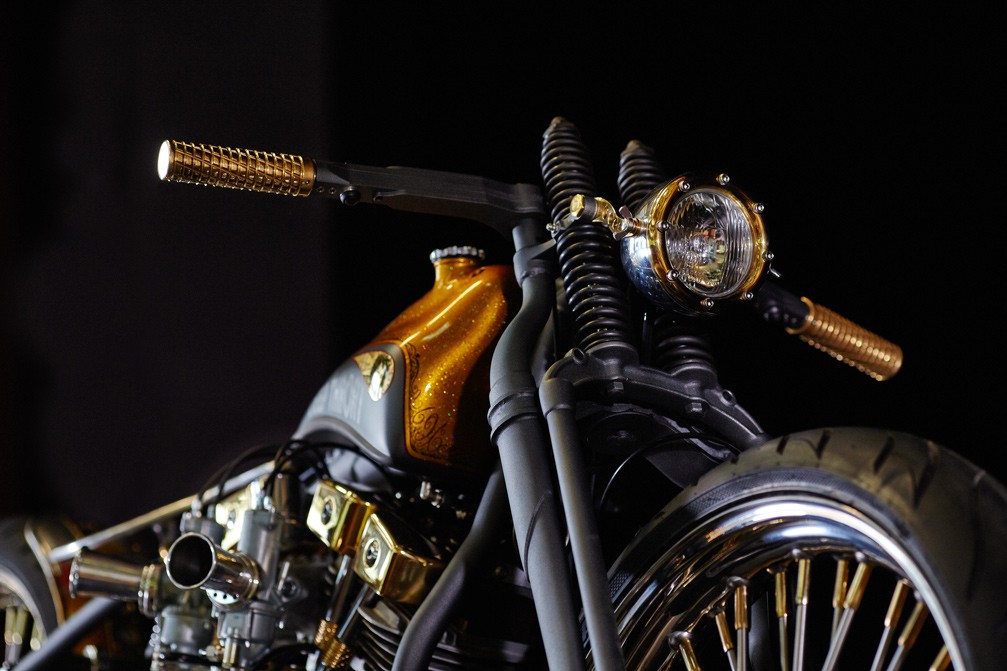

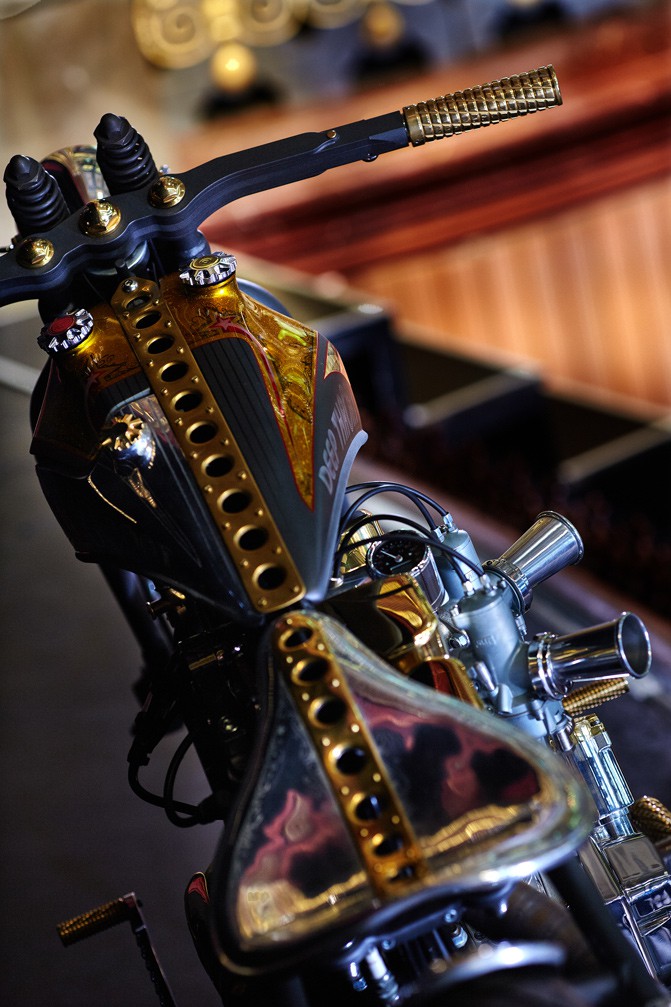

Handlebar: Custom Müller Motorcycle AG in leaf spring look (special feature throttle + clutch as twist grip with Bowden cables routed in the handlebar)
Wheels: TTS Motorcycles Handels GmbH, vo./hi: 3,5x23" TTS Big Spoke stainless steel polished and brass nipples
Tires: vo./hi.: 130/60 R 23 AVON Cobra AV 71
Front brake disc: 292mm Ø Full Floater Müller Motorcycle AG
Front brake caliper: Müller 4-piston brake 3D milled
Rear brake: Drum brake with Hydraulick TTS
Gas tank: Traditional Motors (Sebastian Attenberger)
Oil tank: Traditional Motors (Sebastian Attenberger)
Rear fender: Traditional Motors (Sebastian Attenberger)
Seat: Traditional Motors (Sebastian Attenberger)
Handlebar grips: Müller Motorcycle AG
Ignition switch: Motogadget M-Lock
Handlebar switch: Push button

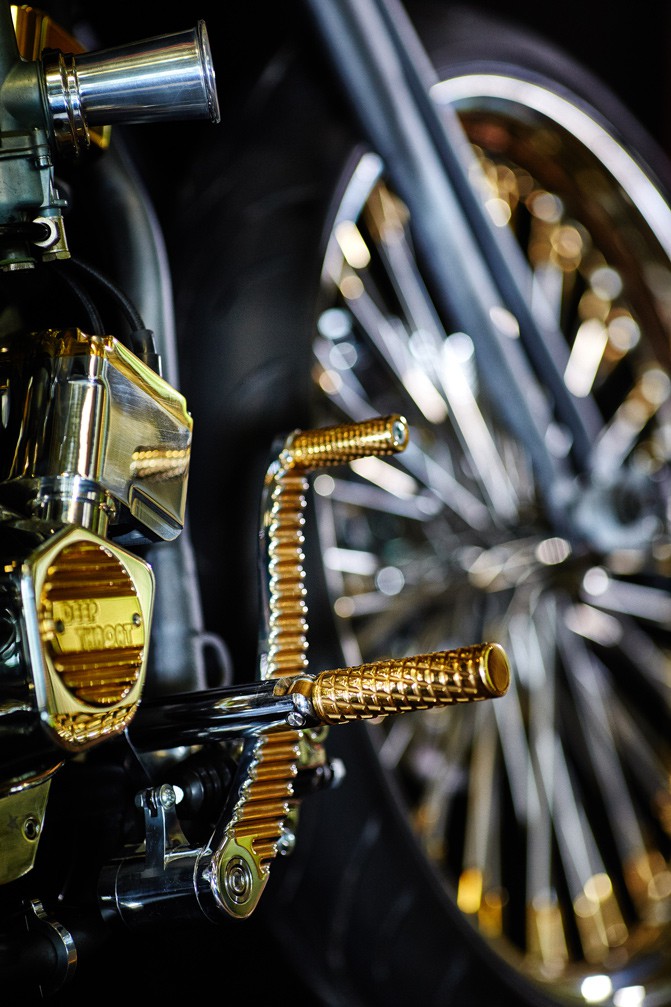

Footrest system: Müller Motorcycle AG, 3D milled aluminum and brass
Headlight: Chopper Kulture
Taillight: Chopper Culture
Indicator instruments: MMB (custom made)

In the meantime, the DEEP THROAT has already had some successes, including:

  • 1. Place in the "H-D Stock" category, "Swiss Custom", Zurich, 02/16
  • "Best of Show", "Swiss Custom", Zurich, 02/16
  • 1. Place in the "HD Stock" category, "Hamburger Motorrad Tage", 02/16
  • 1. Place in the "HD Custom" category, "CUSTOMSHOW Emirates", Abu Dhabi, 04/16
  • 1. Place in the "Custom" category, "Hamburg Harley Days", 07/16
  • "Best of Show" of the EASYRIDERS, "Bike & Music Weekend" Geiselwind, 08/16
  • 1. Place "V2 Harley-Davidson", "Bike & Music Weekend" Geiselwind, 08/16
  • Award for the most sophisticated mechanics, "Bike & Musik Weekend" Geiselwind, 08/16
  • 3. Place in the Modified Harley Class, "European Bike Week", Arneitz, 09/16

FOR SALE - Price on request
